L'exécutable

Le source: NormalesMoyennes.cpp

#include <windows.h>

#include <GL/gl.h>
#include <GL/glu.h>
#include <GL/glaux.h>

#include <math.h>

static GLfloat view_rotx=-90.0 ;
static GLfloat view_roty=0.0 ;
static GLfloat view_rotz=0.0;
static int s = 0 ;

void myinit(void) {
  GLfloat specular[] = { 0.0,0.0,0.0,0.0 };
  GLfloat shinines[] = { 0.0 };
  GLfloat l_pos[] = { 1.0,1.0,1.0,0.0 };
  glClearColor(1.0,1.0,1.0,1.0) ;
  glMaterialfv(GL_FRONT,GL_SPECULAR,specular);
  glMaterialfv(GL_FRONT,GL_SHININESS,shinines);
  glLightfv(GL_LIGHT0,GL_POSITION,l_pos);
  glEnable(GL_LIGHT0);
  glDepthFunc(GL_LESS);
  glEnable(GL_DEPTH_TEST);
  glEnable(GL_NORMALIZE);
}

void normal(float px,float py,float pz,float dx,float dy,float dz) {
  float vx = dy ;
  float vy = -dx ;
  float vz = 0.0F ;
  float d =(float) sqrt(dy*dy+dx*dx) ;
  vx /= d ;
  vy /= d ;
  float vx1 = (2.0F*dx+vx)/3.0F ;
  float vy1 = (2.0F*dy+vy)/3.0F ;
  float vz1 = (2.0F*dz+vz)/3.0F ;
  float vx2 = (2.0F*dx-vx)/3.0F ;
  float vy2 = (2.0F*dy-vy)/3.0F ;
  float vz2 = (2.0F*dz-vz)/3.0F ;
  glPushMatrix() ;
  glTranslatef(px,py,pz) ;
  glBegin(GL_LINES) ;
  glVertex3f(0.0F,0.0F,0.0F) ;
  glVertex3f(dx,dy,dz) ;
  glVertex3f(dx,dy,dz) ;
  glVertex3f(vx1,vy1,vz1) ;
  glVertex3f(dx,dy,dz) ;
  glVertex3f(vx2,vy2,vz2) ;
  glEnd() ;
  glPopMatrix() ;
}

void scene1(void) {
  GLfloat noir[] = { 0.0F,0.0F,0.0F,1.0F };
  GLfloat rouge[] = { 1.0F,0.0F,0.0F,1.0F };
  GLfloat vert[] = { 0.0F,1.0F,0.0F,1.0F };
  GLfloat gris[] = { 0.7F,0.7F,0.7F,1.0F };
  glMaterialfv(GL_FRONT,GL_DIFFUSE,gris);
  glEnable(GL_LIGHTING);
  glPushMatrix();
  float p[] = { 0.0F,0.0F,0.0F } ;
  float p1[] = { -5.0F,-4.0F,-3.0F } ;
  float p2[] = { 1.0F,-5.0F,-4.0F } ;
  float p3[] = { 4.0F,1.0F,-5.0F } ;
  float p4[] = { 2.0F,5.0F,-4.0F } ;
  float p5[] = { -2.0F,4.0F,-4.0F } ;
  glRotatef(view_rotx,1.0,0.0,0.0);
  glRotatef(view_roty,0.0,1.0,0.0);
  glRotatef(view_rotz,0.0,0.0,1.0);
  glBegin(GL_TRIANGLES) ;
  glNormal3f(0.94F,0.26F,2.84F) ;
  glVertex3fv(p) ;
  glNormal3f(-1.19F,-0.53F,2.7F) ;
  glVertex3fv(p1) ;
  glNormal3f(1.33F,-1.52F,2.22F) ;
  glVertex3fv(p2) ;
  glNormal3f(0.94F,0.26F,2.84F) ;
  glVertex3fv(p) ;
  glNormal3f(1.33F,-1.52F,2.22F) ;
  glVertex3fv(p2) ;
  glNormal3f(2.35F,-0.12F,1.86F) ;
  glVertex3fv(p3) ;
  glNormal3f(0.94F,0.26F,2.84F) ;
  glVertex3fv(p) ;
  glNormal3f(2.35F,-0.12F,1.86F) ;
  glVertex3fv(p3) ;
  glNormal3f(1.46F,1.4F,2.21F) ;
  glVertex3fv(p4) ;
  glNormal3f(0.94F,0.26F,2.84F) ;
  glVertex3fv(p) ;
  glNormal3f(1.46F,1.4F,2.21F) ;
  glVertex3fv(p4) ;
  glNormal3f(-0.84F,1.66F,2.35F) ;
  glVertex3fv(p5) ;
  glNormal3f(0.94F,0.26F,2.84F) ;
  glVertex3fv(p) ;
  glNormal3f(-0.84F,1.66F,2.35F) ;
  glVertex3fv(p5) ;
  glNormal3f(-1.19F,-0.53F,2.7F) ;
  glVertex3fv(p1) ;
  glEnd() ;
  glMaterialfv(GL_FRONT,GL_DIFFUSE,noir);
  glLineWidth(2.0) ;
  glDisable(GL_LIGHTING);
  glColor3f(0.0F,0.0F,1.0F);
  normal(-1.33F,-3.0F,-2.33F,0.081F,-1.86F,2.34F) ;
  normal(1.66F,-1.33F,-3.0F,2.32F,-0.88F,1.68F) ;
  normal(2.0F,2.0F,-3.0F,2.23F,0.64F,1.91F) ;
  normal(0.0F,3.0F,-2.66F,0.49F,1.97F,2.21F) ;
  normal(-2.33F,0.0F,-2.33F,-2.0F,1.0F,2.0F) ;
  glColor3f(1.0F,0.0F,0.0F);
  normal(0.0F,0.0F,0.0F,0.94F,0.26F,2.84F) ;
  glColor3f(0.0F,1.0F,0.0F);
  normal(p1[0],p1[1],p1[2],-1.19F,-0.53F,2.7F) ;
  normal(p2[0],p2[1],p2[2],1.33F,-1.52F,2.22F) ;
  normal(p3[0],p3[1],p3[2],2.35F,-0.12F,1.86F) ;
  normal(p4[0],p4[1],p4[2],1.46F,1.4F,2.21F) ;
  normal(p5[0],p5[1],p5[2],-0.84F,1.66F,2.35F) ;
  glPopMatrix();
}

void scene2(void) {
  GLfloat noir[] = { 0.0F,0.0F,0.0F,1.0F };
  GLfloat gris[] = { 0.7F,0.7F,0.7F,1.0F };
  glMaterialfv(GL_FRONT,GL_DIFFUSE,gris);
  glEnable(GL_LIGHTING);
  glPushMatrix();
  float p[] = { 0.0F,0.0F,0.0F } ;
  float p1[] = { -5.0F,-4.0F,-3.0F } ;
  float p2[] = { 1.0F,-5.0F,-4.0F } ;
  float p3[] = { 4.0F,1.0F,-5.0F } ;
  float p4[] = { 2.0F,5.0F,-4.0F } ;
  float p5[] = { -2.0F,4.0F,-4.0F } ;
  glRotatef(view_rotx,1.0,0.0,0.0);
  glRotatef(view_roty,0.0,1.0,0.0);
  glRotatef(view_rotz,0.0,0.0,1.0);
  glBegin(GL_TRIANGLES) ;
  glNormal3f(0.081F,-1.86F,2.34F) ;
  glVertex3fv(p) ;
  glVertex3fv(p1) ;
  glVertex3fv(p2) ;
  glNormal3f(2.32F,-0.88F,1.68F) ;
  glVertex3fv(p) ;
  glVertex3fv(p2) ;
  glVertex3fv(p3) ;
  glNormal3f(2.23F,0.64F,1.91F) ;
  glVertex3fv(p) ;
  glVertex3fv(p3) ;
  glVertex3fv(p4) ;
  glNormal3f(0.49F,1.97F,2.21F) ;
  glVertex3fv(p) ;
  glVertex3fv(p4) ;
  glVertex3fv(p5) ;
  glNormal3f(-2.0F,1.0F,2.0F) ;
  glVertex3fv(p) ;
  glVertex3fv(p5) ;
  glVertex3fv(p1) ;
  glEnd() ;
  glMaterialfv(GL_FRONT,GL_DIFFUSE,noir);
  glLineWidth(2.0) ;
  glDisable(GL_LIGHTING);
  glColor3f(0.0F,0.0F,1.0F);
  normal(-1.33F,-3.0F,-2.33F,0.081F,-1.86F,2.34F) ;
  normal(1.66F,-1.33F,-3.0F,2.32F,-0.88F,1.68F) ;
  normal(2.0F,2.0F,-3.0F,2.23F,0.64F,1.91F) ;
  normal(0.0F,3.0F,-2.66F,0.49F,1.97F,2.21F) ;
  normal(-2.33F,0.0F,-2.33F,-2.0F,1.0F,2.0F) ;
  glColor3f(1.0F,0.0F,0.0F);
  normal(0.0F,0.0F,0.0F,0.94F,0.26F,2.84F) ;
  glColor3f(0.0F,1.0F,0.0F);
  normal(p1[0],p1[1],p1[2],-1.19F,-0.53F,2.7F) ;
  normal(p2[0],p2[1],p2[2],1.33F,-1.52F,2.22F) ;
  normal(p3[0],p3[1],p3[2],2.35F,-0.12F,1.86F) ;
  normal(p4[0],p4[1],p4[2],1.46F,1.4F,2.21F) ;
  normal(p5[0],p5[1],p5[2],-0.84F,1.66F,2.35F) ;
  glPopMatrix();
}

void CALLBACK display(void) {
  glClear(GL_COLOR_BUFFER_BIT|GL_DEPTH_BUFFER_BIT);
  if ( s )
    scene1() ;
    else
    scene2() ;
  glFlush();
  auxSwapBuffers();
}

void CALLBACK myReshape(int w,int h) {
  glViewport(0,0,w,h);
  glMatrixMode(GL_PROJECTION);
  glLoadIdentity();
  glOrtho(-8.5,8.5,-8.5*(float)h/(float)w,8.5*(float)h/(float)w,-8,8);
  glMatrixMode(GL_MODELVIEW);
  glLoadIdentity();
  glTranslatef(0.0F,1.0F,0.0F);
}

void CALLBACK up(void) {
  view_rotx++ ;
}

void CALLBACK down(void) {
  view_rotx-- ;
}

void CALLBACK left(void) {
  view_roty++ ;
}

void CALLBACK right(void) {
  view_roty-- ;
}

void CALLBACK keyz(void) {
  view_rotz++ ;
}

void CALLBACK keyZ(void) {
  view_rotz-- ;
}

void CALLBACK keySpace() {
  s = 1 - s ;
}

void main(void) {
  auxInitDisplayMode(AUX_DOUBLE|AUX_RGB|AUX_DEPTH);
  auxInitPosition(0,0,350,250);

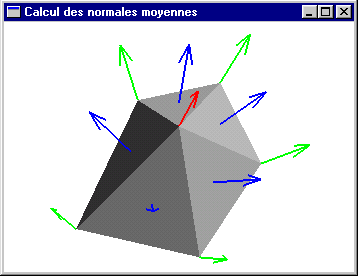

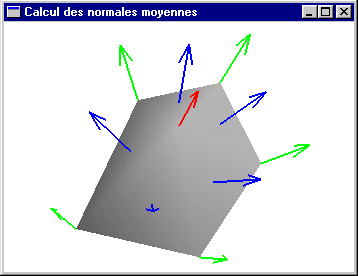

  auxInitWindow("Calcul des normales moyennes");
  myinit();
  auxKeyFunc(AUX_UP,up) ;
  auxKeyFunc(AUX_DOWN,down) ;
  auxKeyFunc(AUX_LEFT,left) ;
  auxKeyFunc(AUX_RIGHT,right) ;
  auxKeyFunc(AUX_z,keyz) ;
  auxKeyFunc(AUX_Z,keyZ) ;
  auxKeyFunc(AUX_SPACE,keySpace) ;
  auxReshapeFunc(myReshape);
  auxMainLoop(display);
}
